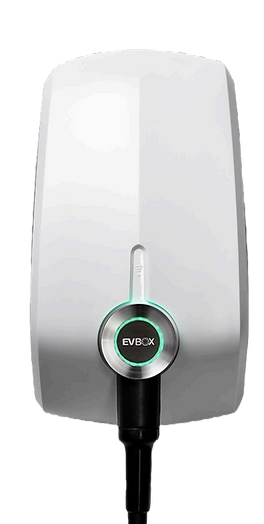

EVBOX ELVI
EVBox Elvi is designed to provide a seamless and efficient charging experience for electric vehicle owners. As a leading home charging solution, it is crafted for those who value convenience, efficiency, and smart technology.
“Effortless Home Charging with EVBox Elvi”
Features
Exceptional Quality
Powerful and Versatile
Supports power ranges from 7.4 to 22 kW, accommodating various charging needs from home to multi-unit dwellings
Smart Tracking
Tracks and invoices all your charging sessions effortlessly, providing transparency in energy consumption and billing.
Universal Compatibility
Fully compatible with every electric vehicle, making it a versatile and future-proof choice.
Ideal for Homes
Perfectly designed for residential use, catering to both single-family homes and multi-unit dwellings.
User-Friendly Design
Easy to install and upgrade with modular, click-on features for a hassle-free experience.
Sustainability
Supports renewable energy sources, allowing users to charge their vehicles with green energy.
Technical Specifications
Electrical Properties
Maximum charging rate (1)
Up to 22 kW
Charging mode
Mode 3 (IEC 61851-1)
Connector Type
IEC 62196-1, IEC 62196-2 compliant:
Type 2 fixed cable, 6m charging cable
Type 2 socket
Connection capacity
1-phase, 230 V, 16 A or 32 A,
50 Hz
3-phase, 400 V, 16 A or 32 A,
50 Hz
kWh meter (1)
3-phase MID-certified meter
Leakage current detection
Tripping times and limits are compliant with IEC 61851-1:2017 Cl. 8.5. (in accordance with IEC 62955:2018 Table 2)
Physical Properties
Dimensions ( W x H x D )
Fixed cable
186 x 328 x 161 mm
Socket
186 x 328 x 219 mm
Dimensions cable dock
( W x H x D )
122 x 197 x 94 mm
Total station weight (1)
Fixed cable
Maximum 7 kg ( dependent on cable type )
Socket
3.5 to 4.0 kg
Environment & Safety Class
Operating temperature
-25 °C to +45 °C (2)
Storage temperature
-25 °C to +60 °C
Maximum installation altitude
2000 m
Enclosure ratings
IP 55 ( IEC 60529),
IK 10 ( IEC 62262)
Safety class
Safety Class 1 I and overvoltage Category III
Certification & Compliance
Power supply input
EV supply equipment permanently connected to AC supply network
Power supply output
AC EV supply equipment
Normal environmental conditions
Indoor and outdoor use
Access
Equipment for locations with non-restricted access
Equipment type
Stationary equipment that is wall-mounted or pole-mounted
1 - Dependent on charging station model
2- Derating of output power may occur
Connectivity
Authorization
RFID reader ( MIFARE® 13.56 MHz )
Communication standard (not applicable for satellite stations)
Wi-Fi (1)
• Wi-Fi 2.4 / 5 GHz
• Wi-Fi 2.4 GHz
Bluetooth 4.0
Cellular communication (1)
4G / 2G
3G / 2G
Hub-satellite RF communication (1)
869 MHz
Fixed Cable
From 7.4 to 22 kW
Tracks and invoices charging sessions
Easy to use, install, and upgrade with modular, click-on features
Compatible with every electric car—now and in the future
Best suited for residential use at houses and multi-unit dwellings
Dimensions in mm
