ETHERNET SWITCH

INDUSTRIAL 4-PORT 10/100/1000T 802.3BT 90W POE + 1- PORT 10/100/1000T + 2-PORT 100/1000X SFP GIGABIT ETHERNET SWITCH

Abstract Surface
Screenshot 2024-09-26 110209_edited.png
Screenshot 2024-08-12 132809_edited.png

88mm

95mm

46mm

Overview

Adiratec APL-4P90-1U-2SFP Series is a Mini Industrial High Power 90W 802.3bt PoE Switch with 4*10/100/1000T Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000T Gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection.


APL-4P90-1U-2SFP adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: PoE PTZ speed dome cameras, Thin clients, AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks, Remote digital signage displays and PoE lightings.


The APL-4P90-1U-2SFP is IP40 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment

Features

  • 5  10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

  • 2 SFP slots, supporting 1000BASE-X and 100BASE-FX

  • Transceiver in dual modes

  • Complies with IEEE 802.3bt PoE Standard

  • Up to 4 ports of IEEE 802.3bt/at/af devices powered

  • Up to 360-watt PoE budget

  • Supports PoE power up to 95 watts for each PoE port

  • Supports DIN-Rail installation

  • Compact fanless design avoids overheating

  • IP40 rugged high-strength metal case

  • 48~57V DC redundant power with reverse polarity

  • protection

  • -40°C to 80°C (-40°F to 176°F) operating temperature

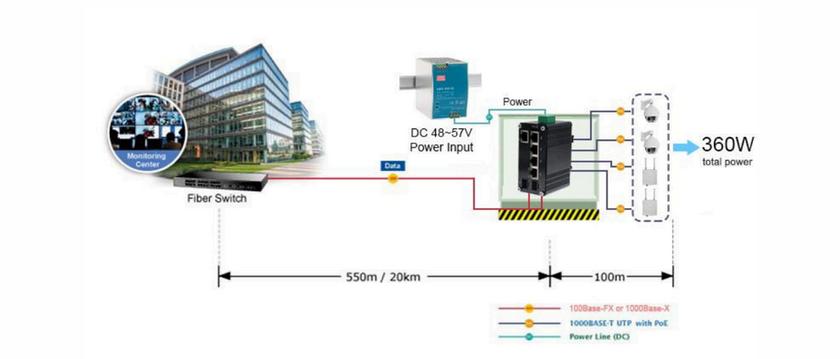

APPLICATION


ORDERING INFORMATION

Model

DESCRIPTION

LNK-IMC205GHP-SFP

  • Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port
    10/100/100T + 2-Port 100/1000X SFP Gigabit Ethernet Switch

SPF Options

  • SFP option. Please select your SFP on our SFP Options Page

    (Industrial SFP)

  • SFP module is to be purchased separately

Mounting Options

  • Default DIN-Rail Bracket installed;

Power Options

  • 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for
    Terminal Block

  • Power Supply is to be purchased separately
